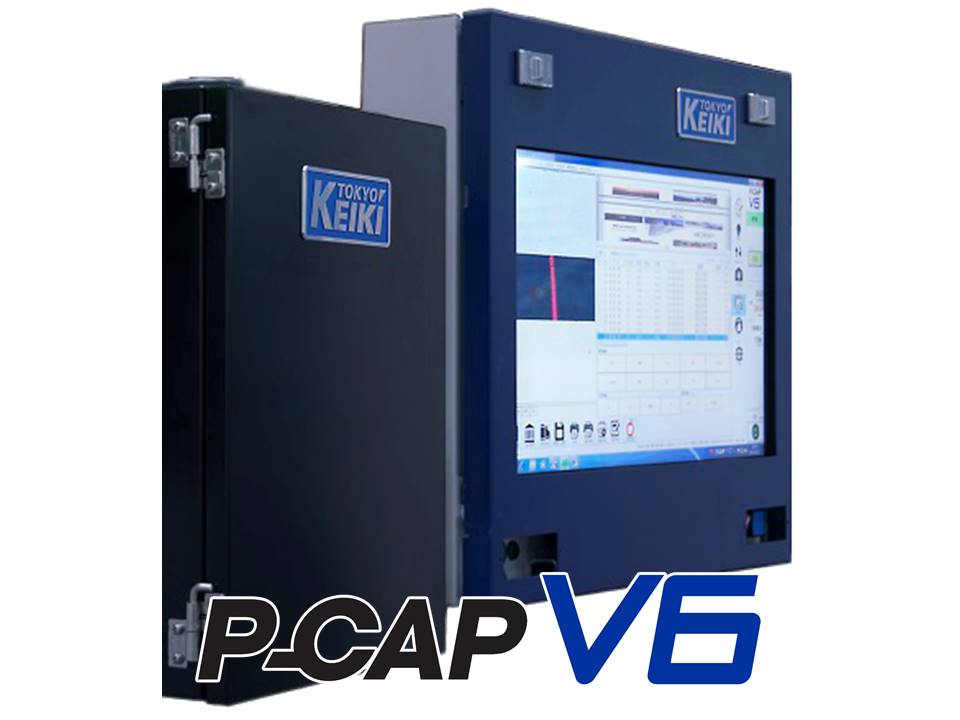

Web Inspection System P-CAP V6

製品詳細

Web Inspection System

Upgraded inspection capabilities！
The best solution for improved printing quality and reduced defects！
If you have any questions on purchasing, support and your local distributor information, please contact us.

▼ Document Download

pcap_v6_e.pdf

pcap_v6_c2.pdf Brochure PDF [Simplified Chinese]

pcap_v6_c1.pdf Brochure PDF [Traditional Chinese]

pcap_v6_k.pdf Brochure PDF [Korean]

pcap_v6_i.pdf Brochure PDF [Indonesian]

pcap_v6_t.pdf Brochure PDF [Thai]

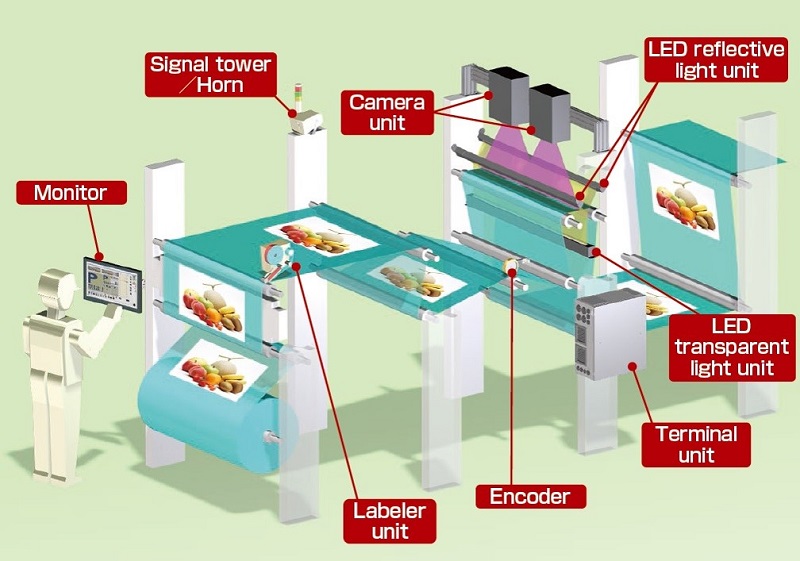

System configuration



Main Features

Beautiful imagery with powerful inspection capabilities
  • Inspection performance greatly enhanced with eight-mode simultaneous processing capability
  • Specialized inspection for streaks
  • Prioritization with severe defects output first
  • Process algorithm with expanded defects detection function
  • Proprietary lens-equipped high-speed digital cameras with high color-rendering LED light sources
Enhanced solutions for tension control and meandering problems
    Tokyo Keiki's exclusive partial image shift processing and real-time automatic repeat length correction
    solves tensioning & meandering problems and enhances inspection within printed designs.
Small in size but boasting powerful high-speed image processing capability
    System's image processing board incorporates Tokyo Keiki-designed & developed DAPDNA ※dynamically reconfigurable processor. Downsized inspection console with faster image processing speeds.
High maintainability and reliability
    Reduced number of parts with assured quality based upon severe environmental testing.

    ※The DAPDNA dynamically reconfigurable processor changes its internal hardware configuration to achieve maximum image processing speeds. We can also sell the processor if you are interested.

Main Specifications

  • Differing levels of inspection (3 levels and 1 mask) for different areas
  • Inspection history data viewer function
  • Double side inspection capability
    (different repeat length possible)
  • Data processing with Microsoft SQL Server
  • (Optional) Color trend monitoring function
  • (Optional) Tablet support

P-CAP V6 installable for

  • Rotogravure, flexographic, offset, business form printing and other systems
  • Inflation/sheet making, coating, laminating, rewinding, slitting, etc.

back

*Design and specifications are subject to change without notice.
