Print-CAP Applications

コンテンツ
The Print-CAP Web Inspection System is designed to be incorporated on printing presses, laminators, rewinders, etc., of various manufacturers.
The number of cameras used can be tailored to meet individual customer requirements for inspection accuracy.
In this page, introducing applications for web inspection mainly. TOKYO KEIKI Print-CAP can be also applied to "web to sheet", "sheet to sheet" application.


Print-CAP Web Inspection System on Inline (Gravure printing) Machinery

In-line inspection involves inspection of the web immediately after printing.
These photos show the Print-CAP system installed on a Gravure printing press.


Printed web is raised to the upper section
of the printing press and heads for the
inspection section

High speed CCD cameras capture images
from the moving web.

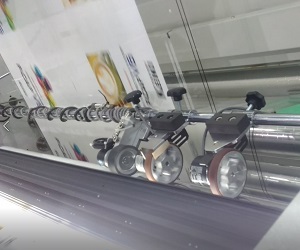

Encoder positioned on top of the web
measure speed and distance.

Exterior view of the inspection system
mounted on the top of the printing press.
Mounting fixtures are positioned on the
printing press with installed cameras,
lighting units, and inspection roll.

Defects detected are marked with a labeler.

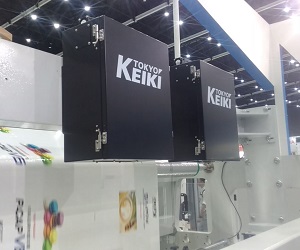

Camera box viewed from below.


Print-CAP Inspection System on Off-line (Rewinder) Machinery

Off-line inspection involves inspection of the web as it is wound by rewinders, etc., after the printing process is complete.

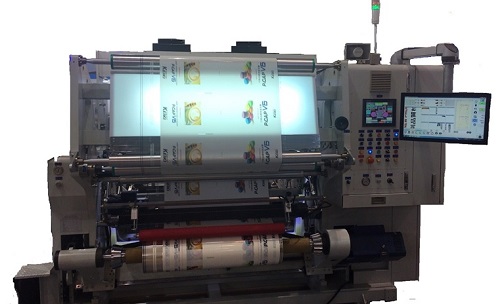

These photos show a Print-CAP system on a rewinder.


Multiple cameras are installed to cover the
 entire inspection area (viewed cross web
 direction)

Encoders monitor the speed and distance
of the web.

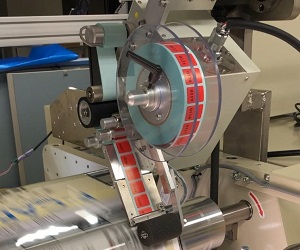

Defects detected are marked with a labeler.

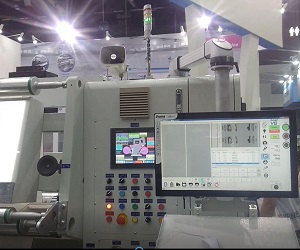

The main unit is located close to the
rewinder and operation is accomplished by
 on-screen buttons.
