Battery-powered Clamp-on Type Ultrasonic Flowmeter for Liquid UC-1

Features

① Without pipe cutting, only one model covers 8 pipe diameters from DN25 to DN100mm

By simply installing it on the outside of the pipe, you can significantly reduce piping installation costs.
Also, clamp-on type has no pressure loss, which leads to energy and cost savings.
Furthermore, it covers 8 pipe diameters with the slide sensors.

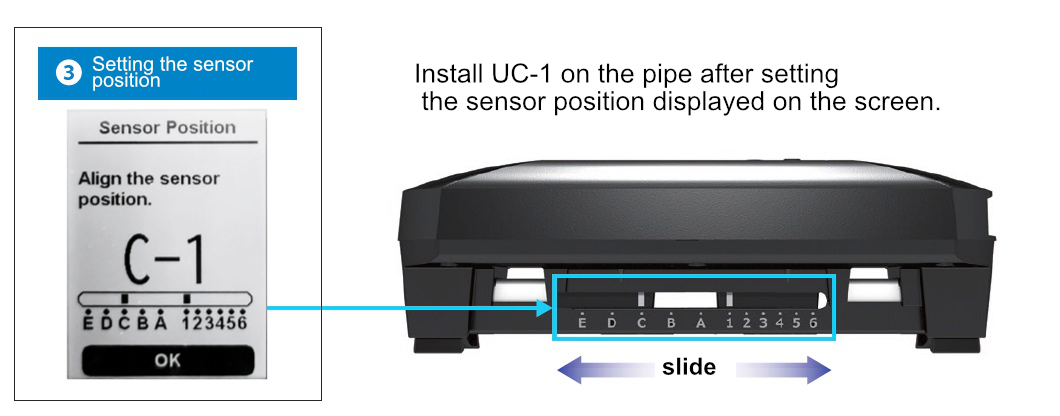

The sensor position is displayed on the screen just by inputting pipe and fluid parameters.

Available for a variety of pipe materials and liquids.
Pipe material : Metal, Non-metal
Liquid：Water, Oil, and Ultrasonic liquids

② Battery-powered clamp-on type ultrasonic flowmeter, operating for 10 years with the internal battery

You can save on electrical wiring costs with the internal battery.
※The battery life may vary depending on the environmental factors.

You can check the battery status on the display.

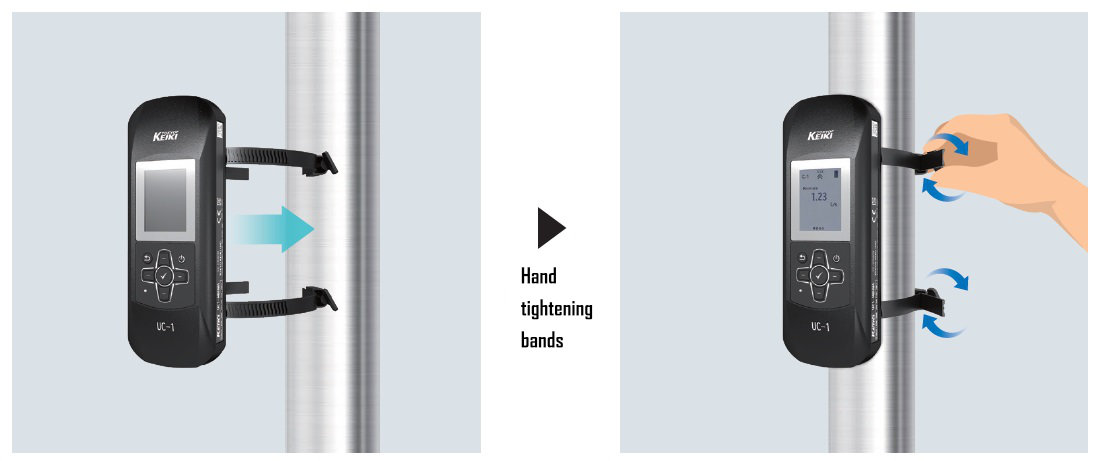

③ Tool-free with hand tightening band

You can easily install it with the attached bands only. No mounting fixture or grease is required.
The bands are made of resin, so there is no risk of injuries.

Measurement Principle（Ultrasonic pulse transit time difference method）

The two sensors mutually emit and receive ultrasonic waves.
Ultrasonic waves move faster in the direction of the flow and slower against the flow.
The ultrasonic flowmeter calculates the flow rate from the time difference between the flow in the direction of the flow and against the flow.
Since ultrasonic waves pass through materials, the ultrasonic flowmeter can measure the flow rate inside the pipe from the outside.
