Position and Attitude Sensor VSAS-T1G

製品詳細

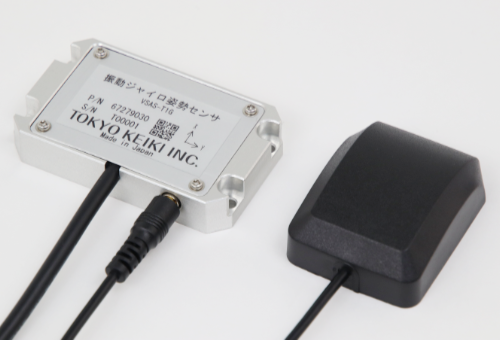

Position and Attitude Sensor

The VSAS-T1G sensor, which is smaller than the VSAS-4GM sensor, can be incorporated into various devices due to its significantly reduced size.

▼ Document Download

The VSAS-T1G sensor incorporates vibratory gyroscopes, accelerometers and magnetic compass, outputting motion, azimuth and attitude.
With the optional GPS receiver, positional information can be supported as well.

Dimensions: W50 x D35 x H6 mm
Weight: Less than 10 g (without GPS antenna)


Features

  • Slim and Lightweight design
  • Positional updates at 5Hz with GPS antenna
  • Recording Software(Sample) attached

Applications

  • Motion measurement incorporated into various devices
  • Motion measurement of the human body

VSAS = Vibratory Silicon-gyro Attitude Sensor

back

*Design and specifications are subject to change without notice.
