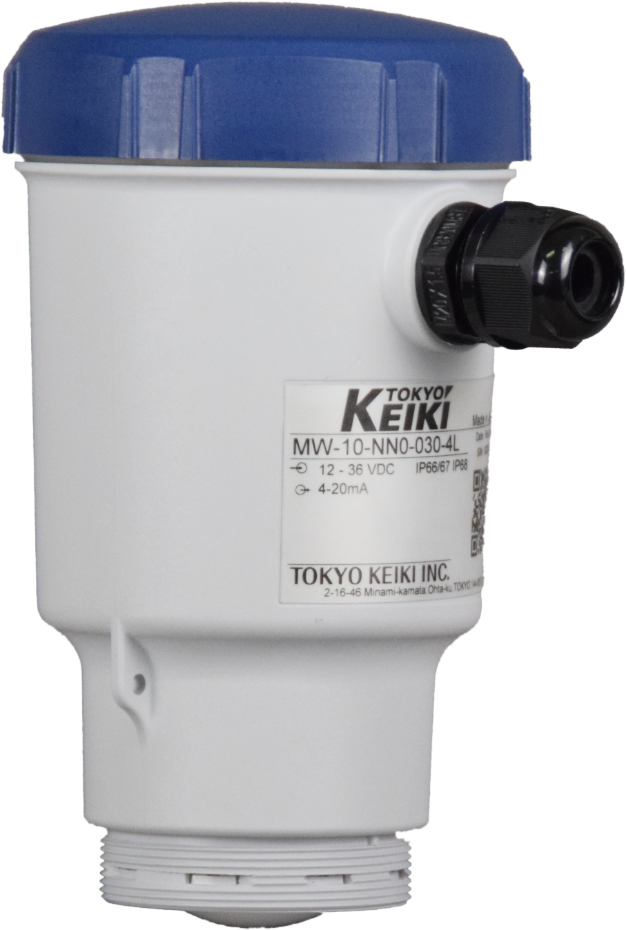

FMCW Radar Level Gauge MW-10/11

製品詳細

Stable measurements even in narrow space

MW-10 series is FMCW Radar Level Gauge that operates in the 77~81GHz millimeter-wave frequency range.
By using millimeter waves, MW-10 series can provide stable measurements with a narrow beam even in narrow space.
It can also be used in open areas such as rivers, dams, and channels.

※FMCW - Frequency Modulated Continuous Wave

Inquiry

▼ Document Download

bro_mw1011en_202412.pdf Brochure [ENG]

pds_mw1011en_202412.pdf Product Data Sheet [ENG]

qig_mw1011en_202412.pdf Quick Installation Guide [ENG]

ug_mw1011en_202412.pdf User's Guide [ENG]

csom_mw1011en_202412.pdf Configuration Software Operation Manual [ENG]

bro_mw1011kr_202412.pdf Brochure [KOR]

dielectricconstanttable.html Dielectric Constant Table

Features

The measurement range is up to 100m.
Depending on the application, two types of models are available: 10m/15m/30m models and 50m/100m models.
The accuracy is ±2mm. MW series can be installed in narrow spaces with a 3° beam angle. ※
Compact and lightweight, making it easy to install.
Intermittent operation of the power supply system using solar panels is possible. (low power consumption, fast start-up time)
The start-up time is 5 seconds.
Suitable for use in open areas.
You can wirelessly set the parameters and monitor the measurement values using a Bluetooth connection with your smartphone.
The flow rate calculation is possible with weirs, flumes, and user-defined tables.
　※ It depends on the model

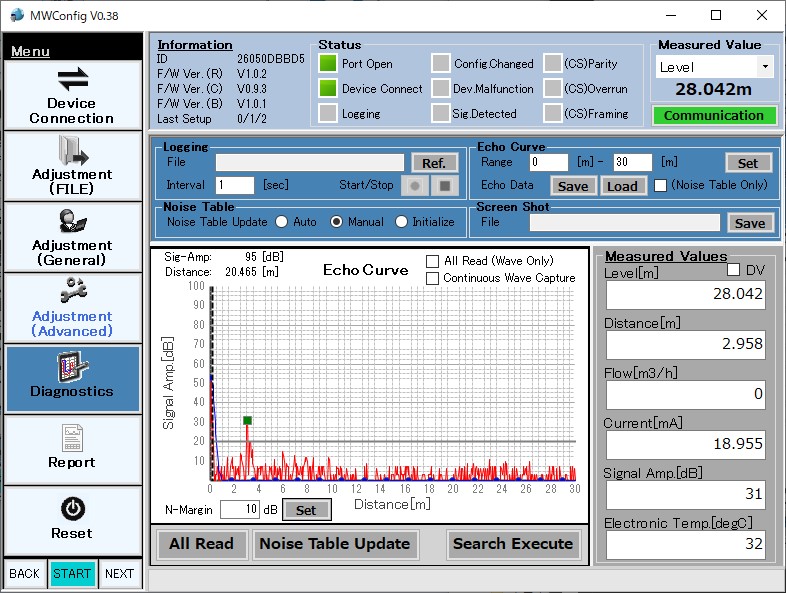

Example of PC screen

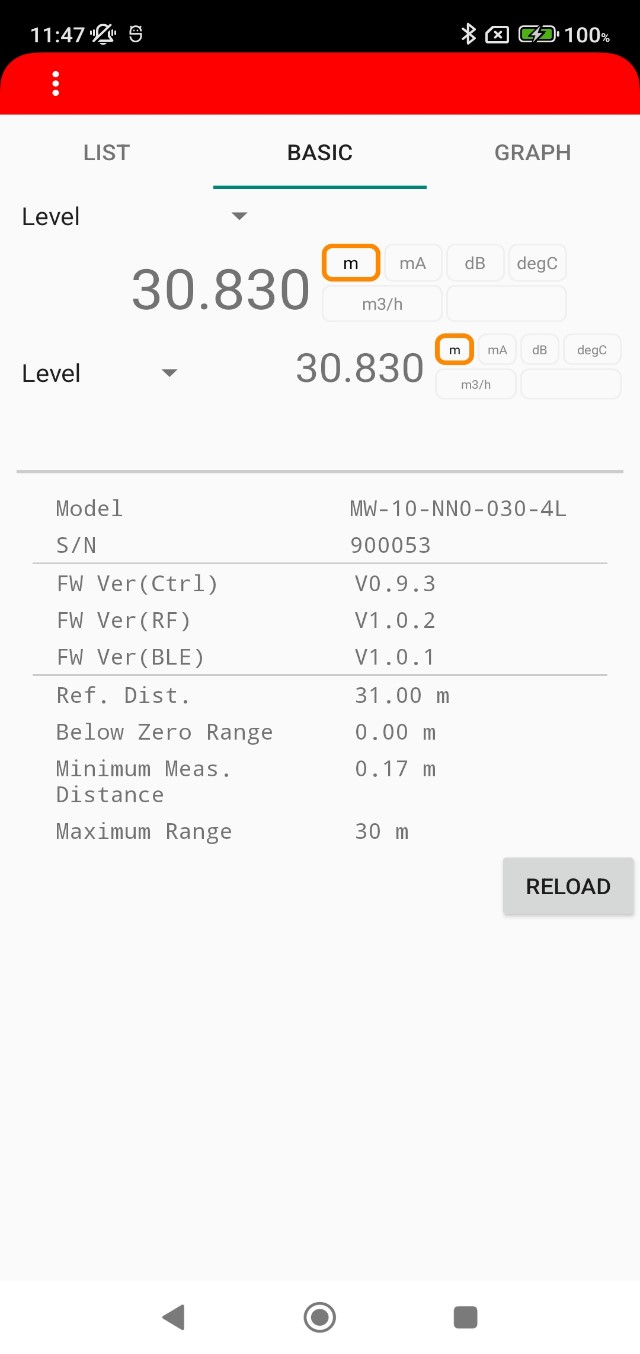

Example of smartphone screen
Bluetooth® connection

back

*Design and specifications are subject to change without notice.
