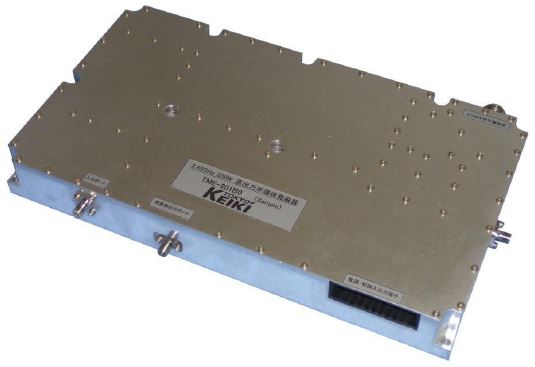

Solid-State 2.45GHz BAND High Power RF Oscillator TME201B00

製品詳細

Solid-State 2.45GHz BAND High Power RF Oscillator

Do you choose magnetrons(tube) at this last moment?
You can get stable RF power by the All Solid State HPA!
It’s easy handling and long life!

▼ Document Download

sspo200_201606.pdf

Specification

Built-In Voltage Controlled Oscillator!
Frequency Output : 2.45GHz
High Frequency Stability
Power Output : 200W(CW)
Efficiency : 40%
Small Sized : 155mm(W), 275mm(D), 33mm(H)
MTBF : 10 years @ 75deg.C
Power : DC Power Supply Only

Function

Adjustable(power) : 1- 200W
Adjustable(Freq.) : +/-50MHz
Monitor Points as belows :
Power, Over Temperature,
High VSWR, and others.

Application

Plasma Instruments
Microwave Reactors
R&D Equipments
Compatible with MAG.
Satellite(Broadcast,etc.,)
RADAR(FM,Pulse,etc.,)

back

*Design and specifications are subject to change without notice.
