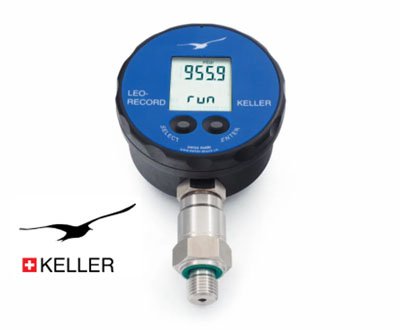

Digital Pressure Gauge LEO-Record

製品詳細

Product Description

The high-accuracy LEO-Record digital manometers can record pressure and temperature autonomously for long periods thanks to their memory function. The data logger can be connected to a computer via the RS485 interface for configuration and for reading out the recorded data. The current pressure value can be displayed in a wide variety of units of pressure. Power is supplied by a high-quality 3,6 V lithium battery.

Inquiry

▼ Document Download

leo-record datasheet DL

Features

High accuracy
Piezoresistive pressure sensor chip, insulated encapsulated
Pressure and temperature recording
Non-volatile memory ensures a high degree of data security
Very low power consumption, long battery life
Optional: Intrinsically safe version LEO-Record-Ei available for use in explosive environments

Functions

Wide range of pressure units to choose from
5 user-defined pressure units configurable via software
Zero point calibration via buttons
Record function can be stopped and started manually
Various configurable recording functions

Accuracy

± 0,05 %FS

Total error band

± 0,1 %FS

Pressure ranges

-1…3 bar to 0…1000 bar

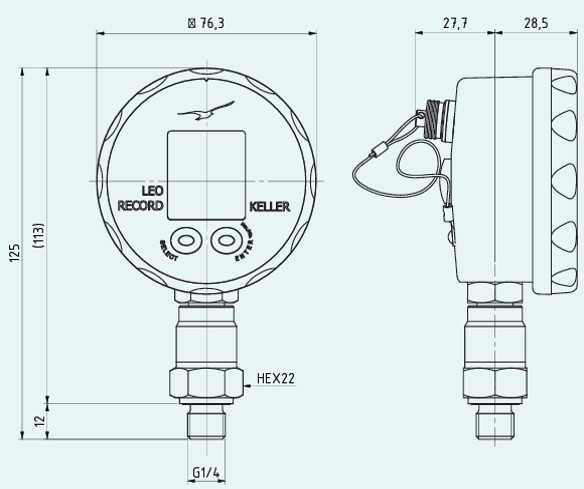

sketch

Performance

LEO-Record piezoresistive

Accuracy @ RT (20…25 °C)	≤ ± 0,05 %FS	Non-linearity (best fit straight line, BFSL), pressure hysteresis, non-repeatability, zero point deviation and amplification deviation.
Total error band (0…50 °C)	≤ ± 0,1 %FS	Maximum deviation within the specified pressure and temperature range.
Compensated temperature range	0…50 °C
Long-term stability	≤ ± 0,1 %FS	Per year under reference conditions, annual recalibration recommended.
Position dependency	≤ ± 1,5 mbar	Calibrated in vertical installation position with pressure connection facing downwards.
Pressure range reserve	± 10 %	Valid measured values outside the pressure range, no overflow/underflow.
Temperature measurement accuracy	± 1 °C typ.
Accuracy @ RT (20…25 °C)	≤ ± 0,1 %FS	Non-linearity (best fit straight line, BFSL), pressure hysteresis, non-repeatability, zero point deviation and amplification deviation.
Total error band (0…50 °C)	≤ ± 0,2 %FS	Maximum deviation within the specified pressure and temperature range.
Compensated temperature range	0…50 °C
Long-term stability	≤ ± 0,1 %FS	Per year under reference conditions, annual recalibration recommended.
Long term stability 30 mbar range	≤ ± 0,1 mbar
Position dependency	≤ ± 0,2 %FS	Calibrated in vertical installation position with pressure connection facing downwards.
Temperature measurement accuracy	± 1 °C typ.
Pressure range reserve	± 10 %	Valid measured values outside the pressure range, no overflow/underflow.
Line pressure dependency (PD version)	≤ ± 0,005 %FS / bar
Line pressure	≤ 2 bar
