Gyrocompass ES-180

製品詳細

Model ES-180, the newest in the ES series, is a compact and popular gyrocompass.

▼ Document Download

g-accessories_e_202508.pdf Accessories Brochure[PDF]

It is especially designed for medium and small vessels using TOKYO KEIKI's state-of-the-art mechatronics technology. The ES-180 gyrocompass can also be used as a directional sensor for a variety of navigational equipment.

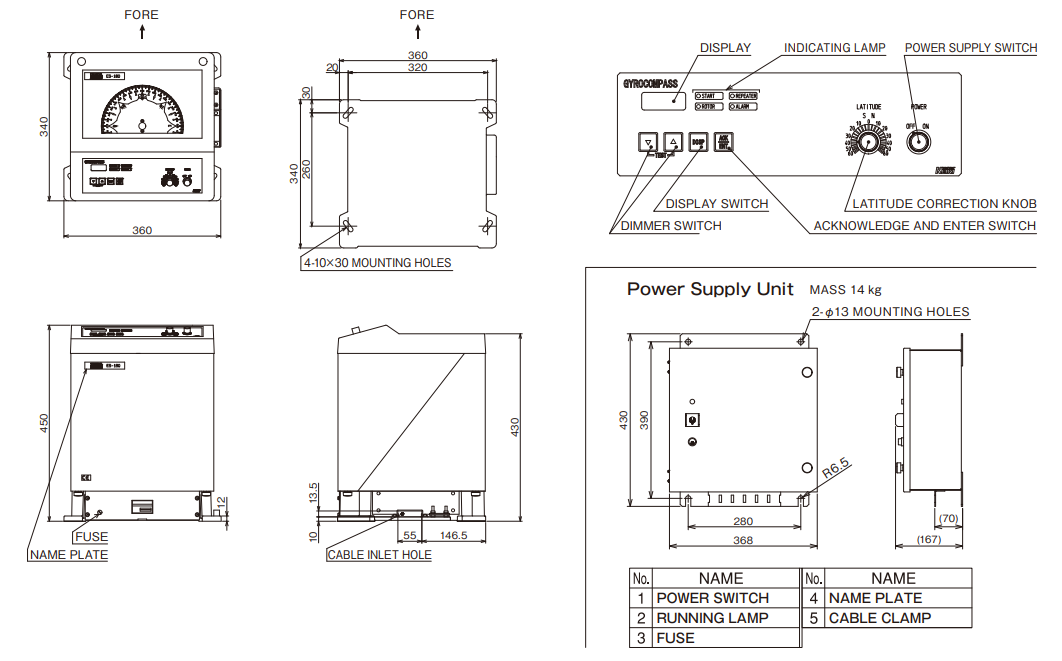

Dimensions Master Compass

Basic Specifications

Main Power Supply	24VDC , 100/110VAC(Option) Master Compass at starting 240W in normal operation 100W for Repeater Compass 60W (4 circuits) Voltage Fluctuation － 20 % ～＋ 30 %
Emergency Power Supply	24VDC
Ambient Temperature	－ 10 ℃ ～ 50 ℃ (at operation)
Settling Time	within 4 hours at Latitude 35°
Settle Point Error	less than ± 1.0°
Gimbal Freedom	± 40°for both rolling and pitching
Range of Latitude Error Correction	Manual (0°～ ± 70°)
Repeater Type	STEP SIGNAL: 24VDC 1/6° 3Φ(4 circuits)
Repeater Type	SERIAL SIGNAL: IEC 61162-1 or IEC 61162-2 (4circuits)

back

*Design and specifications are subject to change without notice.
