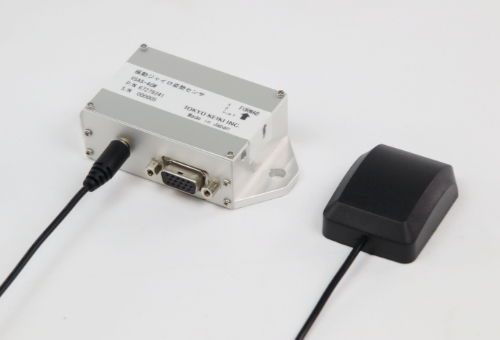

Position and Attitude Sensor VSAS-4GM

The VSAS-4GM sensor, consisting of three vibratory gyroscopes, three accelerometers, GPS receiver, magnetic compass and control electronics in a single package, outputs 3-axis acceleration, 3-axis angular rate, azimuth, pitch angle, roll angle and self-position.

Dimensions: W65 x D45 x H25 mm
Weight: Less than 125 g

Features

• High attitude accuracy：pitch, roll, low heading drift
• Wide dynamic range：angular rate, acceleration
• Location measurement error：within a few meters
• High performance GNSS receiver：support for GPS, QZSS, SBAS
• Interface：RS-232C, CAN2.0B

Applications

For automobile, motorcycle, unmanned aerial vehicle, machinery and robot.

• Motion measurement
• Attitude measurement
• Control for motion and attitude

VSAS = Vibratory Silicon-gyro Attitude Sensor
