Float type level switches YFD series

製品詳細

Float type level switches

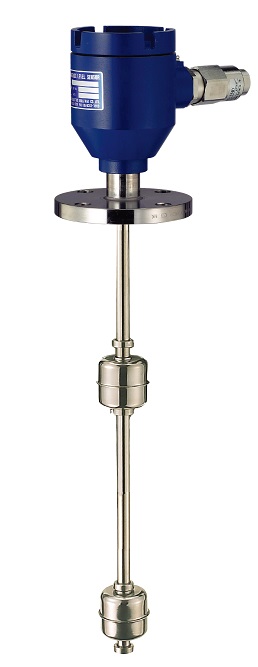

Float type level sensor made of SUS that is pressure resistant and explosion-proof

Can measure liquid levels stably in an explosive atmosphere. One switch can measure liquid level at multiple points (a maximum of 7 points).


Products that conform to the pressure-resistant explosion-proof standard (ExdⅡBT4).

▼ Document Download

Features, keys

  1. Multi-point detection One unit can detect liquid levels at a maximum of 7 points.
  2. The unit is durable, highly reliable, and is not affected by temperature, humidity, or gases The unit is very reliable and durable thanks in part to the use of the highly reliable reed switch.
  3. Safe design that endures harsh tank conditions
    Can be used in various conditions including water-proof housings (protection class IP65), detection section can withstand a pressure of 1 MPa.
  4. Conforms to the pressure resistance and explosion-proof standard (ExdⅡBT4)

Usages, use examples

  • Detect levels of water, oil, and various liquid chemical agents
  • Control liquid levels at multiple points
    Ex.: Can be used with various applications, including controlling pumps, setting upper and lower limit alarms, and contributing to decreasing users’ total costs.

Standard specifications

Terminal box

Terminal box Materials AC4A-T6
Painted color Dark blue equivalent to Munsell 5PB3/8
Design IP65
Proprietary cable ground Model name: SXC-16BY2 Applicable cable outside diameter: 8.0 to 10.0mm
Model name: SXC-16BY1 Applicable cable outside diameter: 10.0 to 12.0mm
Connection Dimensions JIS5K50A FF
Materials SUS304
Float Outside diameter Φ50xH48
Materials SUS316L
Measurable specific gravity 0.65 or more
Stem Outside diameter Φ13
Materials SUS304
Length dimension (Max.) 3000mm
Electrical ratings Contact point capacity 30WDC / 30VA, AC
Maximum open/close voltage 250V DC/250V AC
Maximum open/close current 0.45A, DC / 0.45A, AC
Others Maximum number of points detected 7
Float withstanding pressure 1.0MPa
Operating temperature: -10 to 100 degrees
L1 dimension (min) *1 48mm
L dimension (min) *:2 88mm
Setting distance dimensions (min) *3 100mm
L-Ln dimension (min) *:4 40mm
Pressure resistant explosion-proof standard ExdⅡBT4
*1: The Ln dimension means a length from the set position to the bottom of the screw.
*2: The L dimension means the total length from the bottom of the screw.
*3: Setting distance dimensions refers to the minimum dimension when two stoppers are used.
*4: The L-Ln dimension refers to the difference between the final setting position (Ln) and total length.
Note: The values for *3 and *4 are true when the specific gravity of the liquid is 1.0.

back
