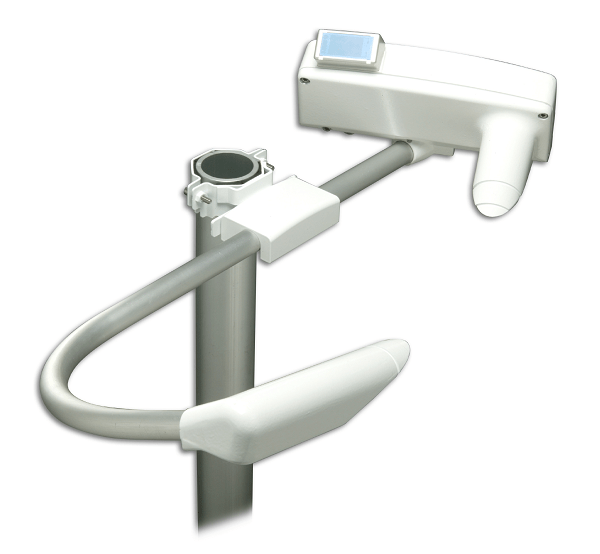

Vaisala Present Weather and Visibility Sensors PWD series

製品詳細

Automated observation networks need to operate with maximum reliability. Maritime and aviation observing systems need to operate in extremely harsh conditions. Meteorological institutes face challenging productivity and performance requirements. Vaisala Present Weather Detector PWD52 answers these needs with a mixture of robustness, dependability, versatility, and reliability.

Inquiry

▼ Document Download

Features

Accurate, traceable measurement of prevailing visibility
Detects precipitation type
Measures the intensity and accumulation of precipitation
Estimates snow accumulation
Robust and dependable
Weather-proof design reduces need for maintenance
Easy to install, easy to integrate

Technical Data

Observation range of MOR	10 … 50 000 m (32 … 164 000 ft)
Weather type identification	7 different types of precipitation (rain, freezing rain, drizzle, freezing drizzle, mixed rain/snow, snow, ice pellets) Precipitation (unknown type)Fog (mist), haze (smoke, sand) or clear
Operating temperature	−40 … +60 °C (−40 … +140 °F)
Power supply	12 … 50 VDC (electronics) 24 VAC or 24 VDC for heater option
Average power consumption	3 W (peak 10 W) With optional luminance sensor: 5 W With optional hood heaters: 65 W

*Picture, Document provided by TAMAYA TECHNICS INC

back

*Design and specifications are subject to change without notice.
