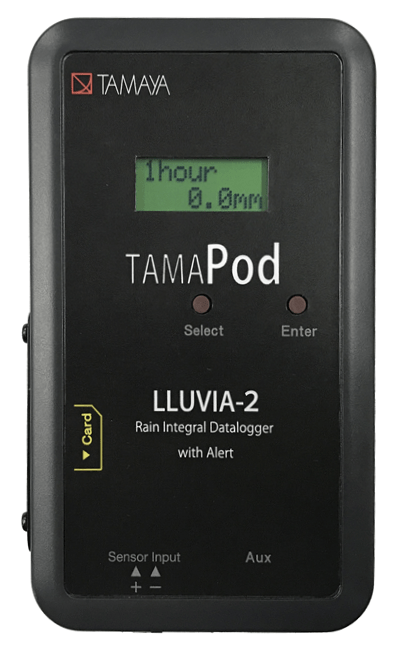

Rain Integral Datalogger with Alarm Function TAMAPod LLUVIA-2

製品詳細

TAMAPod LLUVIA-2 records a signal from a tipping bucket type rain gauge as cumulative rainfall during a 10-minute period. Using two AA-size batteries, the datalogger can measure continuously for over one year, and data will be recorded onto an SD card. By using the optional LL alarm01, it is possible to set the alarm upper and lower limits for 1-hour and 24-hour rainfall, respectively, and output an alarm signal (An external power supply is needed when using the alarm unit.).

Inquiry

▼ Document Download

The alarm setting for TAMAPod LLUVIA-2 can be set at 10-minute intervals, for the past 10 minutes, the past 1 hour, the past 24 hours, or from the beginning of rainfall.

Input Channels	1ch (with no voltage contact or with voltage contact (2～30v), detected pulse width: 500ms)
Increments	Tips at 0.1mm、0.5mm、1mm
Operation Keys	Select and Enter keys
Data Storage	Depends on size of SD card (2GB SD card can store around 60 million data)
Display	LCD
Display: Cumulative rainfall for past 1 hour	Displays cumulative rainfall for the past 1 hour
Display: Cumulative rainfall for past 1 hour24 hours	Displays cumulative rainfall for the past 24 hours
Display: Cumulative rainfall from beginning of rainfall	Displays cumulative rainfall from the first detection of signal from tipping bucket (updates every 1 second), can be reset at 6- , 12- and 24-hour intervals.
Alarm Setting	Options: past 1 hour, past 24 hours, and from beginning of rainfall
Alarm Condition	Alarm will go off if any of the three alarm settings, below, is exceeded:
	・After 1 hour of continuous rainfall
	・After 24 hours of continuous rainfall
	・From beginning of rainfall
Recording Intervals	Records cumulative rainfall of 10 minutes, every 10 minutes
Recording Format	CSV file
Collection of Data	SD Card (Up to 32GB)
Collection of Data	Automatic transfer into SD card (When built-in memory becomes full, data will be automatically transmitted to the SD card.)
Communication Port	RJ-45 connector
Batteries	2 AA-size batteries (alkaline dry cells)
Battery Life	Approx. 1 year
Dimensions	69(W)×115(H）×28(D)mm

*Picture, Document provided by TAMAYA TECHNICS INC
