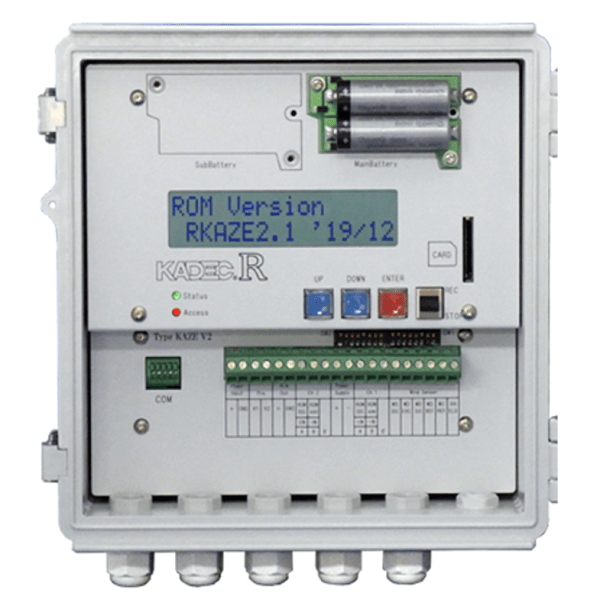

Dataloggers KADEC R-KAZE

製品詳細

KADEC R-KAZE is a datalogger for recording wind speed and wind direction observations, and for inputting two supplementary channels. With the two supplementary channels, the operator can connect the datalogger with various types of sensors. The operator can select one element from the five measurement elements avalable -- PRD, humidity, voltage, current, and NTR -- for each of the two channels. Selecting wind speed/wind direction and RTD, and humidity will be a good example.

Inquiry

▼ Document Download

KADEC R-KAZE records the average wind speed and wind direction, the average maximum wind speed and wind direction, the maximum wind speed and wind direction, and the time. For instance, with only the built-in battery, and connecting to HMP155 using the supplementary input channel, the operator can measure, continuously, for half a year at 10-minute intervals.

Specifications

Input		Input Channels	Wind sensor + 2ch
	Wind sensor (For KDC-S04 series only)	wind speed	Measurement Range	0～90m/s
			Resolution	0.1m/s
			Accuracy	±0.2m/s
		wind direction	Measurement Range	0～360° (16 directions)
			Resolution	±0.2m/s
			Accuracy	±0.2％
	1,2 ch (Select one from 5 measurement elements available, for each channel)	PT100 RTD	Measurement Range	-200～+200℃
			Resolution	0.0１℃
			Accuracy	0.2℃
		HUM (Recommend HPM155D)	Measurement Range	0～１Ⅴ（0～100％）
			Resolution	0.1％
			Accuracy	0.1％F.S.
		Voltage	Measurement Range	0～±5V
			Resolution	0.1mV
			Accuracy	±0.1％F.S.
		Current	Measurement Range	0～±20mA 100Ω load resistance built-in
			Resolution	0.1uA
			Accuracy	±0.15％of F.S.
		NTC (6kΩ）	Measurement Range	-50～+120℃
			Resolution	0.1℃
			Accuracy	0.3℃
Power supply	Low power sensors such as HMP155 and PTB210		10V/15ⅿV
Measurement Intervals			1,2,3,4,5,6,7,12,15,20,30/ sec
			1,2,3,4,5,6,7,12,15,20,30/ min
			1,2,3,4,6,8,12,24/ hour
Recording data		Storage Capacity	97,280 elements
		Storage Media	Non-volatile memory
		Memo function	Number of memo: 6
			Memo Capacity: 16 characters
			Character: Alphabet, Katakana, Symbol
		Storage Method	Memory scroll method
Recording Media		Card Type	SD Card
		FAT Fomat	FAT、FAT32
		Capacity	32GB or below
		Format	CSV format
		Data transfer	Manual backup or automatic data transfer
Communication function		Communication method	RS-232C
Communication function			For maintenance and external device connection
Display			LCD 16 digits, 2 lines (operating temperature: -20～+80 degrees)
			※When temperature is below -10℃, response of display slows down and fades out slightly.
			※After 90 seconds of idle time, display automatically turns off
Operation Keys			3 Push Buttons (UP/Down/Enter)
Operation Keys			Slide switch (Recording start / stop)
Standard Function		Pre-Timer	Turning ON/OFF of the external devices before start of recording
		Pre-Timer	Option: OFF, 1～30 sec, 1～59 min
		After Timer	Recording starts after the specified date and time
		After Timer	（Default setting is disabled）
		10 Steps Indicator on the LCD Screen	10 steps indicator on the LCD screen
		10 Steps Indicator on the LCD Screen	※Resets when the battery is replaced.
Battery Indicator		Power Consumption	20mA (excluding the time when data are written on SD card.)
		Power Consumption	50uA in standby mode
		Power Source	Exclusive battery or 2 CR123A
		Power Source	External power DV12V (Maximum DC 24V)
		Data Storage Power Supply	CR123A×1
Operating System			I-TRON(Real time OS)
Working Environment
