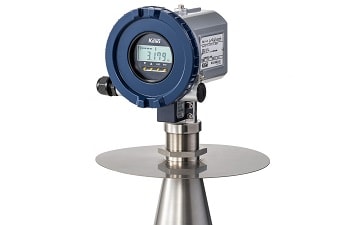

Microwave level gauge MD-10

製品詳細

bro_md-10_202110.pdf

Inquiry

The MD-10 measures liquid level by transmitting low energy radar pulses toward a liquid surface and receiving the radar echoes.

Operation Manual Product data sheets[PDF]

Features

Spiral Search Mode
High speed activation with low power consumption
Easy Configuration
Menu driven 4-keys input or Graphical PC software by RS48
Easy Installation and quick connection
Gauge and Plate can be connected at site by hand
Strong and stable against tough condition
Vaporatmosphere, Temperature, Pressure or Density / Gravitychange

Target Market

Water distribution
Hydraulic power station
Sewage water treatment plant
General industrial
Petro - chemical
Fine - chemical
Pharmaceutical
Food
Factory effluent

The radar pulse is virtually unaffected by the contents and atmosphere of the tank, temperature or pressure. Thus radar measurement is proven to be the most reliable gauging method in most applications. Furthermore, maintenance requirements are practically zero because no part of the gauge is in physical contact with the liquid. These features make the MD-10 very well suited for storage and buffer tanks in the chemical and water industry.

Specifications

General	Measuring principle	Time Flight impulse Radar technology
	Operating frequency	5.8 GHz
	Half power beam angle	Cone antenna 8”: 17deg.
	Microwave output power	Max 1μW
	Reference conditions	Free space reflection from metal surface, ambient temperature 25℃, atmospheric pressure
Display / Configuration	Local display	5 digit LCD display with 4 configuration buttons. Level, Ullage, Volume, Volume Max or Signal Amplitude output
Display / Configuration	PC Remote configuration	Windows base setup and configuration software
Electrical	Power supply	Loop powered 10-16 VDC
	Output	RS485
	Output variable	Level, Ullage in m or ft. Volume in %, Amplitude in dB.
	Signal on alarm	None
	Cable entry	2-M20×1.5(Applicable Cable diameter : 6.5-9.0mm)
Mechanical	Antenna	Cone antenna 8”
	Antenna material exposed to tank	Cone antenna: 8” SUS(316L), PTFE, Viton
	Housing / Enclosure	Casting Aluminum
	Flange	On request or customer supply
	Mass	4.3Kg
	Height above flange	230 mm
Environment Condition	Max pressure	-0.1 to 1.0MPa (-14 to 145 psi)
	Ambient temperature	-20 to 70 ℃ (-40 to 158°F), LCD Display –20 to 70℃
	Ingress protection	IP65
Measuring Performance	Instrument accuracy	+/- 10mm
	Repeatability	+/- 1mm
	Update interval	1 Second
	Measuring range	Depend on Antenna type and products nature, see diagram at page 4

back

*Design and specifications are subject to change without notice.
