Portable Ultrasonic Rail Flaw Imager “Sono Checker“ SM-5R

製品詳細

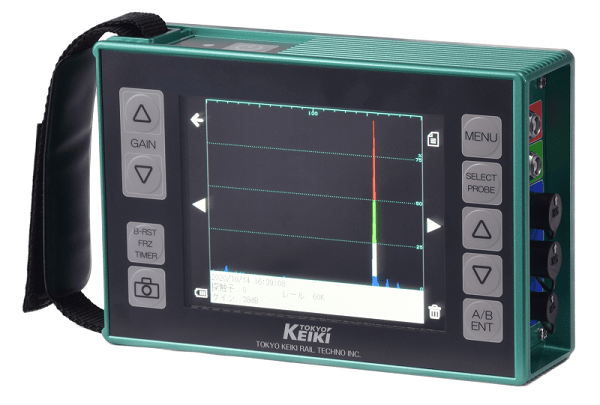

The SM-5R is a portable ultrasonic flaw imager that operates on rechargeable batteries.The functions and operations of the unit are specific for railway maintenance which makes the small and compact device very easy to use. The SM-5R supports B-mode (B-scan) display (cross-sectional display) and A-mode (A-scan) display for ultrasonic digital flaw images. The inner state of the rail is intelligibly displayed with a B-mode cross-sectional color image enabling defect judgments to be performed easily. The "SM" series(SM-1RA, SM-2R, SM-3R and SM-5R) has been provided to many customers in Japan and foreign countries.


Search Units 0°, 45°, 70°




Specifications

  • Search Unit (Probe)
    Three types (0°, 45°, and 70°) of probes are available as optional equipment. When a probe is selected with the probe selection key switch, the display contents also change automatically.
  • Display (In case of B-mode)

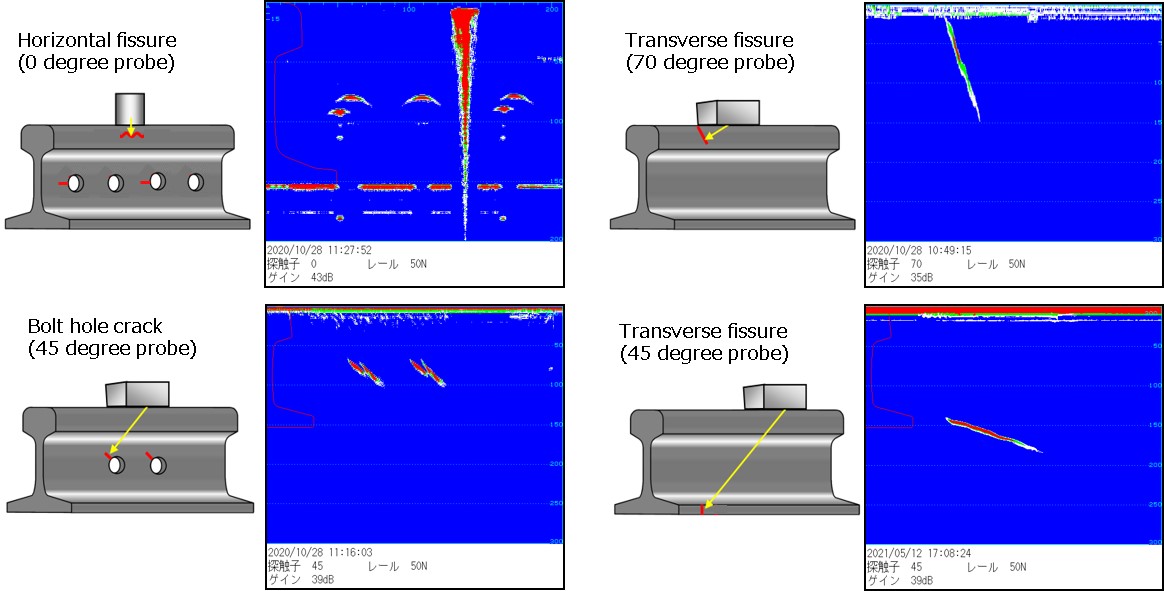

    The vertical axis indicates the depth of the source of reflection and the color of the display indicates the echo level. The horizontal axis indicates the probe shift distance (in timer scan mode, shift distance during scanning).

Features

  • Easy operation, small, and compact.
  • Internal memory for defect detection images.
  • A maximum of 1,000 screens (PNG file format) of defect detection images can be stored in memory.
    The saved images can be directly imported to a computer with a USB cable.
  • It weighs only about 1.3 kg, It is light enough to be held in one hand.
  • It has the 5.7-inch touch panel color LCD allows for intuitive operation.
  • The rechargeable battery allows for about 4 hours of continuous use.
  • It has IP64 waterproof performance. You can also use in case of sudden rain.

back

*Design and specifications are subject to change without notice.
