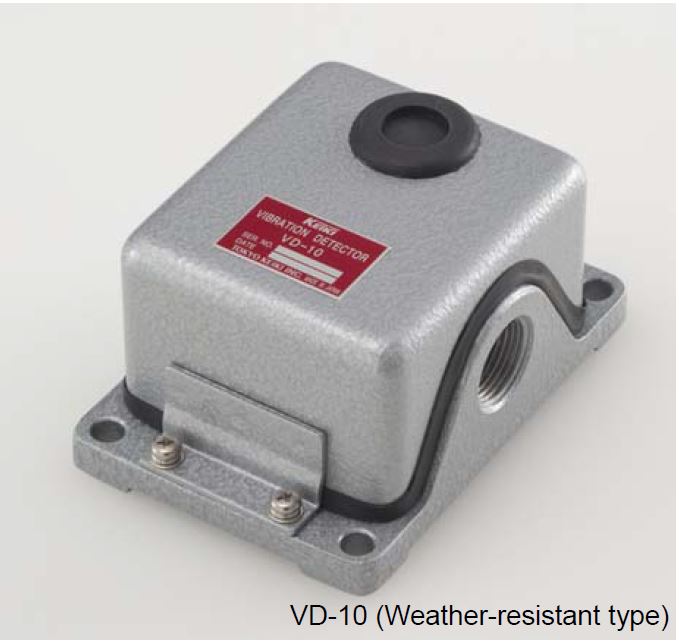

Vibration Detector VD-10

製品詳細

Help protect mechanical equipment from damage with the vibration switch

The Vibration Detector is a safety device, which quickly detects abnormalities in mechanical equipment in order to help prevent breakdown.
The reliable performance of the Vibration Switch is time proven - it has received very favorable user response from the time it was first marketed over 30 years ago.

Inquiry

▼ Document Download

bro-vd10_20140115.pdf

operation_manual_vd_10_kf15_001a.pdf Operation Manual

Specification

Type		Standard
Model		VD-10
Range	Setting range	0 ~ 44.1m/s2 (0 ~ 4.5G)
	Recommended range	4.9 ~ 44.1m/s2 (0.5 ~ 4.5G)
	Resolution	0.98m/s2 (0.1G)
Frequency range		0 ~ 300Hz
Accuracy		+/- 2.21m/s²
Output	Form	Relay output
	Contact form	S.P.D.T.
	Capacity	125/250V AC (3A) 48V DC (1A) 125V DC (0.5A) 250V DC (0.25A)
Reset	Operation	Manual reset : Reset button operation
	Operation	Remote reset: Remote reset by power supply
	Reset power	100 ~ 125V AC/DC (50/60Hz in AC power)
	Coil rating	100V AC/DC (5min) 110V AC/DC (3min) 115V AC/DC (2.5min) 125V AC/DC (2min)
	Coil rating	Rated current 0.23A
Power consumption		25VA
Environmental Condition	Temperature	-20C deg ~ +80C deg
Environmental Condition	Humidity	10 ~ 95% RH (non-condensation)
Construction	Protection degree	IPX4 (JIS C 0920)
Construction	Ex-approval	Not approved
Cable connection		Rc3/4 (PT3/4)
Case material		Mount; Aluminum casting (AC4C)
Case material		Cover ; Aluminum alloy plate (A5052)
Color		Hammer tone Baked (N7)
Mass		Approx. 0.9Kg

back

*Design and specifications are subject to change without notice.
