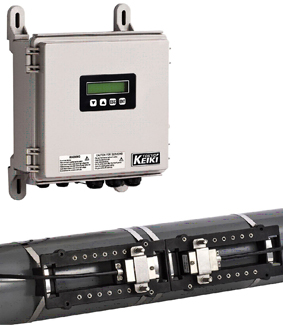

Ultrasonic Flowmeter UFW-100

製品詳細

Ultrasonic flowmeter UFW-100 now comes, measurement unlimited by the imagination.

TOKYO KEIKI, the world’s first supplier of ultrasonic flowmeters and industry pioneer is proud to introduce the clamp-on flowmeters of next generation which are environmentally friendly and provide the consistent reliability and “Made in Japan”quality that customers have come to expect from the TOKYO KEIKI brand.
The new UFW-100 Series ultrasonic flowmeter boasts a smaller, more compact footprint & size and lower power consumption in a material-saving, RoHS compliant design.

Inquiry

▼ Document Download

UFW-100_2404_e.pdf

pds_ufw_100_202305.pdf Product data sheets

operation_manual_ufw_100_kf11_001g.pdf Operation Manual

eu_declaration_ufw-100_cset-21-055.pdf EU Declaration[PDF]

howtouse.html How to Use[Video]

<Advantage of "Clamp-On">
No Pressure Loss (pump power savings)
No Wetted Parts (no contact with liquid)
No Moving Parts (no wear)
No Need to Stop the Process (easy installation)

<Typical Application>
Water Distribution
Factory Utilities
HVAC Systems
Process Monitoring
Replacement for old in-line meters
Desalination Processes

<Main Functions and Features>
Measuring Accuracy : +/- 1.0~2.5% of reading
4-20mA Output (1ch)
Contact Output (1ch)
Data Logging (1min. intervals; up to 1month)
RS-485 Modbus Output (1ch) (Option)
Analog Current Input (1ch) (Option)
Smaller, Compact Footprint & Size*1
Lower Power Consumption *2
RoHS Compliant

Specifications

Measurement	Method	Ultrasonic pulse transit time difference method
	Diameter Range	DN 25mm - 600mm
	Accuracy	Pipe Diameter	Velocity ≧ 1m/s	Velocity < 1m/s
		DN 25mm - 40mm (*1)	±2.5% R.D.	±0.025m/s
		DN 50mm - 90mm	±2.0% R.D.	±0.020m/s
		DN 100mm - 250mm	±1.5% R.D.	±0.015m/s
		DN 300mm - 600mm	±1.0% R.D.	±0.010m/s
Output	Analog output	1port(Std.) 4-20mA Allowable load resistance 600Ω Max.
	Relay output	1port(Std.) for Totalizing, Warning or Directional output
	Digital output	1port(Std.) USB connection / Inter-communication mode
	Digital output	1port(Option) RS-485 / MODBUS-RTU output
Input	Analog Input	1port(Option) 4-20 mA / Passive input
Main unit	Protection Degree	IEC60529 IP65
Transducer	Applicable Temperature	‐20 ~ 60℃
	Protection Degree	IEC60529 IP65(Std.) / IEC60529 IP67(Option)
	Cable Length	30m Max. (Applicable cable model : RG-223U)
Data Logging	Over 68,000 lines(exp. more than 1month by 1min interval / Interval selectable) Logged Item; Date, time, Instantaneous flow rate, +Total, -Total, Error code and Event status
Function	PC Graphical parameter setting 4 key configurable from the console Self-diagnostics Disturbance detection No Echo receiving warning Low flow cut Zero shift		Span compensation Fixed Analog Output Auto Gain Control Preset Totalize Start Data Retention Echo-wave form monitor Error Status indication

*1: Site calibration required.

*1 : Space volume of main unit reduced 60% relative to comparable TOKYO KEIKI products.
*2 : Power consumption reduction (approx.): -5% at AC100V / -14.8% at AC200V / -10% at DC24V

back

*Design and specifications are subject to change without notice.
