COMNICA “Shockless” Directional Flow Control Valves COM-3/5/7/8 Series, SH Type (Shockless), CH Type (3 Channel Setting), AN Type (Analog Input)

製品詳細

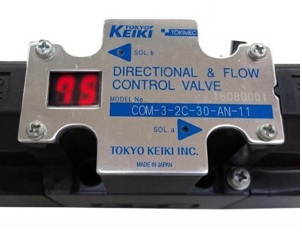

Shockless Speed Control
Onboard push buttons and digital indicator allows easy setting for shockless operation, controlling the acceleration, deceleration, and various positioning of the valve

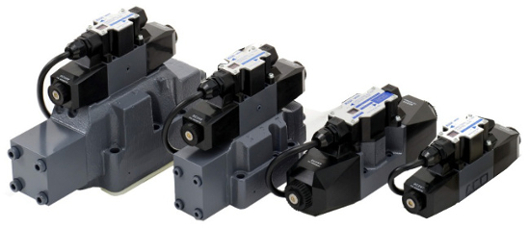

COM-3/5/7/8 Series
 COMICA series ranges from CETOP3 to 8 sizes, suited for various applications. Customized option for components and cables are also available. Control method comes in the following 3 types. Please refer to the PDF literature for details.


SH Type (Shockless)
Simple shockless and speed control by selecting A or B direction with contact signal of PLC. Easy position control by using the HALT function.


CH Type (3 Channel Setting)
Enables selection of three flows - high, medium, low speeds - for A, B direction and independent setting of acceleration, deceleration between the three flows.


AN Type (Analog Input)
Speed (flow) setting in real time with analog voltage. Acceleration, deceleration time setting possible.

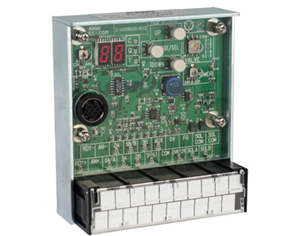

Setting Device for DIN Rail Mount

EC-COM
DIN Rail Mount
Specifically designed for DIN rail installation for efficient layout design and installation work.

Applicable to Full Lineup
Applicable to all COMNICA valves for all sizes, voltage and control type (except types that incorporate controller on the conduit box)

Sink or Source connections available







Handheld Setting Device

COH-1-10
Easy Setting
Handheld setting device allows easy data setting of COMNICA valves in hard-to-reach locations.

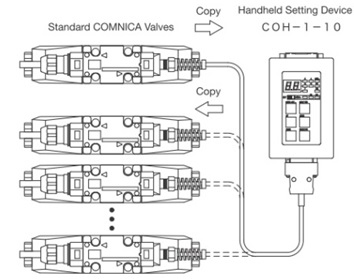

Data Copy
Basic data can be copied to the handheld setting device and copied into other COMNICA valves. This enables same settings for multiple valves.







back

*Design and specifications are subject to change without notice.
