We TOKYO KEIKI INC. are the manufacturer of Non-contacting Radar level gauge.
This time, we will introduce an application for river monitoring.
Open Channel Ultrasonic Flowmeter UW-D Series

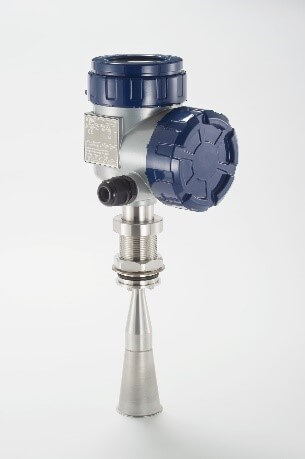

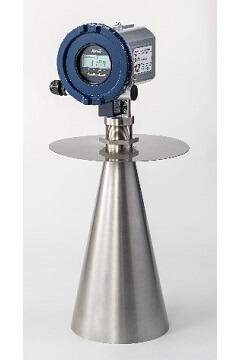

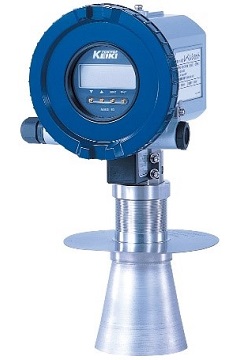

The Non-contacting Radar level gauge features accurate & non-contact level
measurement with simple installation over a target liquid, in this case, river
water surface.
At this particular site, the Radar gauge provides stable level measurement of
the river level, unaffected by atmospherics like typhoon or fog. Especially
for typical application of flood alert monitoring station, river water level
must be monitored for disaster prevention. So high-accurate and stable level
monitoring is suitable application for radar gauge.
Submerged pressure sensor systems are often used in these types of
installations. The sensors detect the pressure exerted by the liquid’s
mass. Pressure is then converted to level measurement in accordance with
preset densities. These types of gauges are commonly applied in waterworks
because of their relatively simple construction and design which involves
direct sensor-liquid contact (wet installation). There are disadvantages
however with these types of gauges. For example, river bottom sediment may
cause an increase in submerged pressure transducer measurement errors.
Ultrasonic level gauges are also frequently employed as a non-contact means of level measurement. This type of gauge measures the round-trip transiting time of high frequency sounds to and from the surface of a liquid and converts this into distance. Ultrasonic level gauges however are easily affected by fog, vapor, pressure, temperature changes, and other environmental factors.
Radar level gauges, which incorporate electromagnetic waves (microwaves) on the other hand, do not require direct contact with liquids, density parameters or
complex capacitance comparisons. Microwave-based level gauges are also least affected by ambient conditions. In addition, the KRG-10 /MRG-10 radar level
gauge offers HART 2-wire loop communication protocol (MD-10 has RS-485 digital out put only) so customers can change any parameter from a central
computer station with PC and configuration software. The our Radar level gauge 4-key input menu display also allows parameter setting on site as an alternate
method.
|
Radar |
Pressure Transmitter |
Ultrasonic |
Non-Contact |
○ |
☓ |
○ |
Vapor (High Temp & High Humidity) |
○
Least affected
|
○
Not affected
|
☓
Increased errors
|
Temp. Change |
○
Least affected
|
○
Not affected
|
☓
Increased errors
|
Sediment |
○
Not affected
|
☓
Increased errors
|
○ |
Durability |
○
Isolated from ambient conditions
|
☓
Wet
|
☓
Exposed to ambient conditions
|

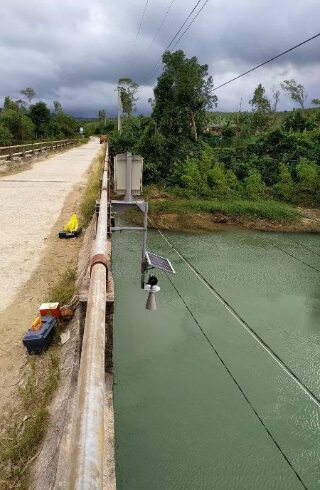

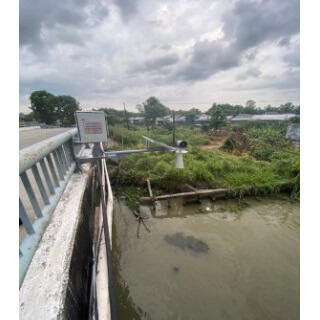

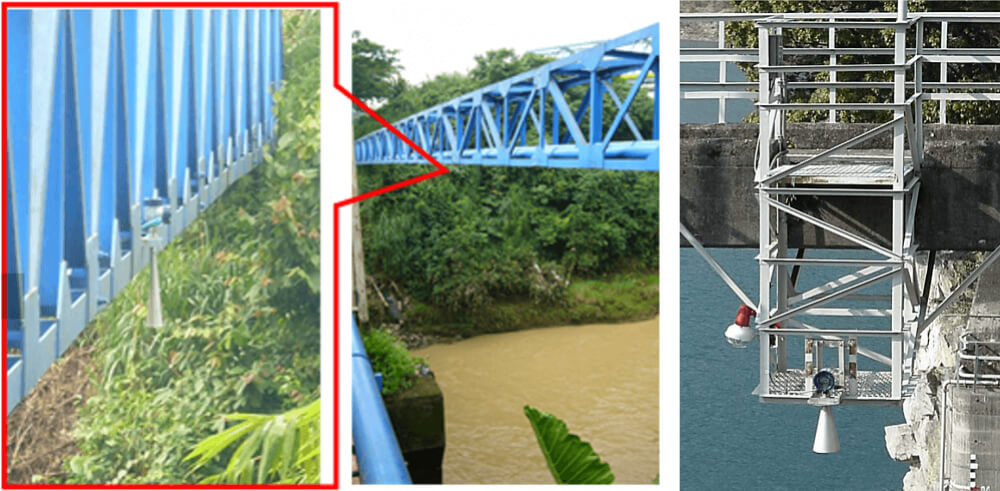

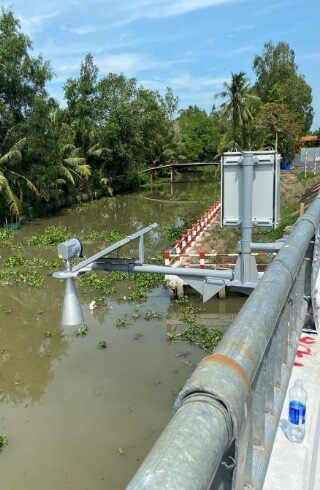

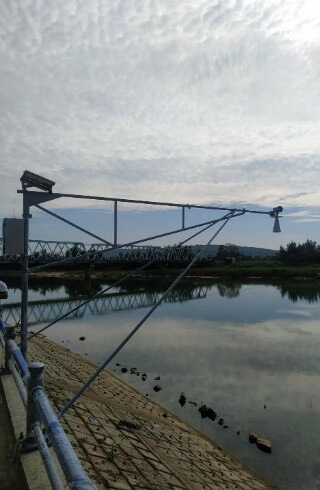

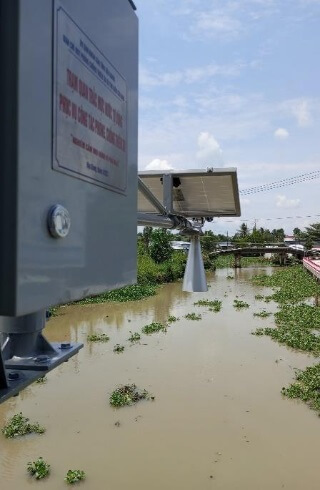

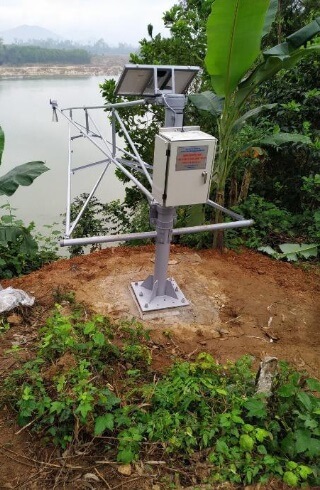

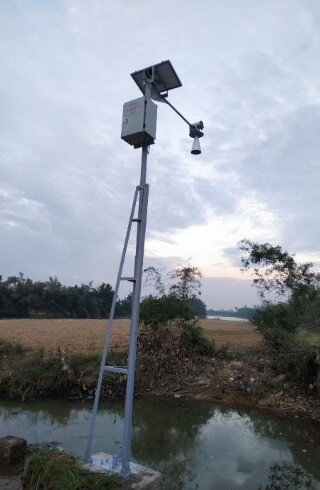

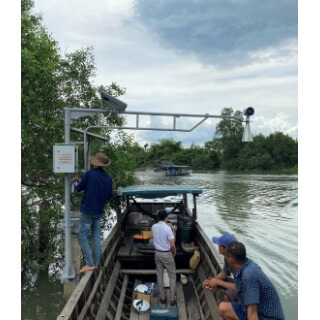

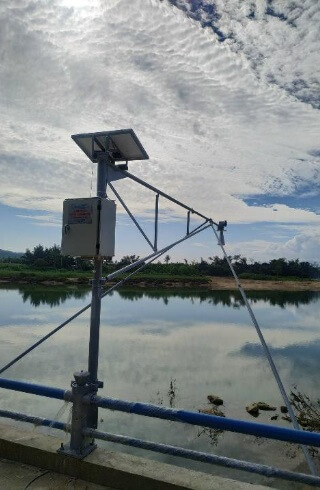

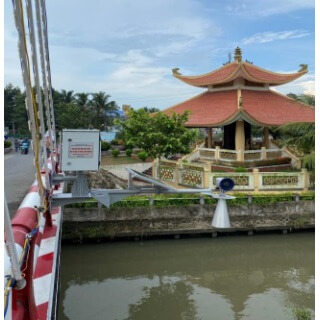

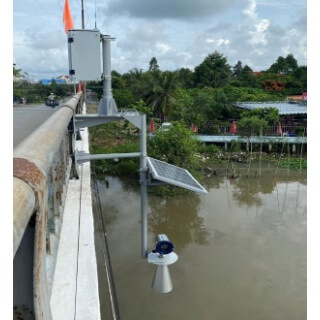

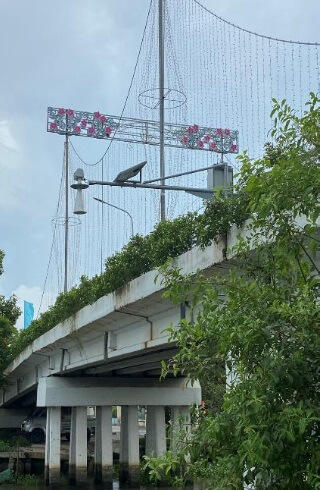

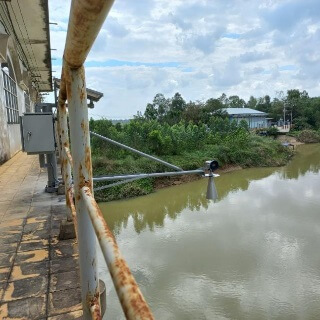

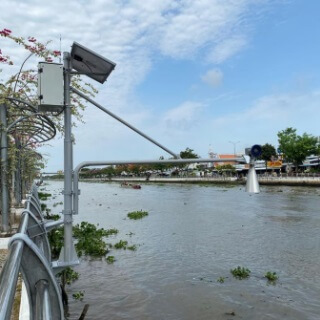

Site photos
